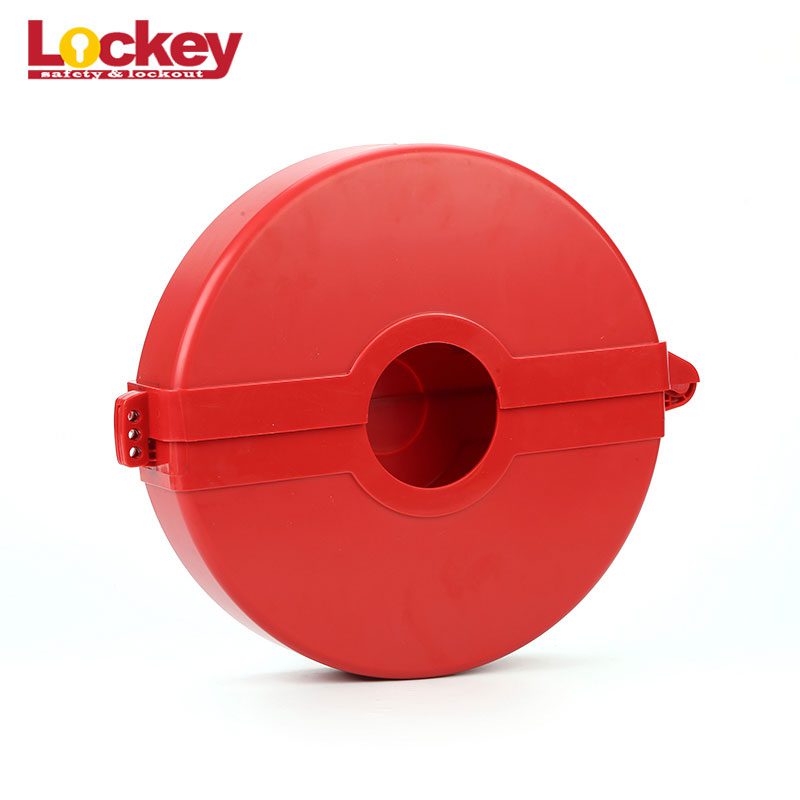

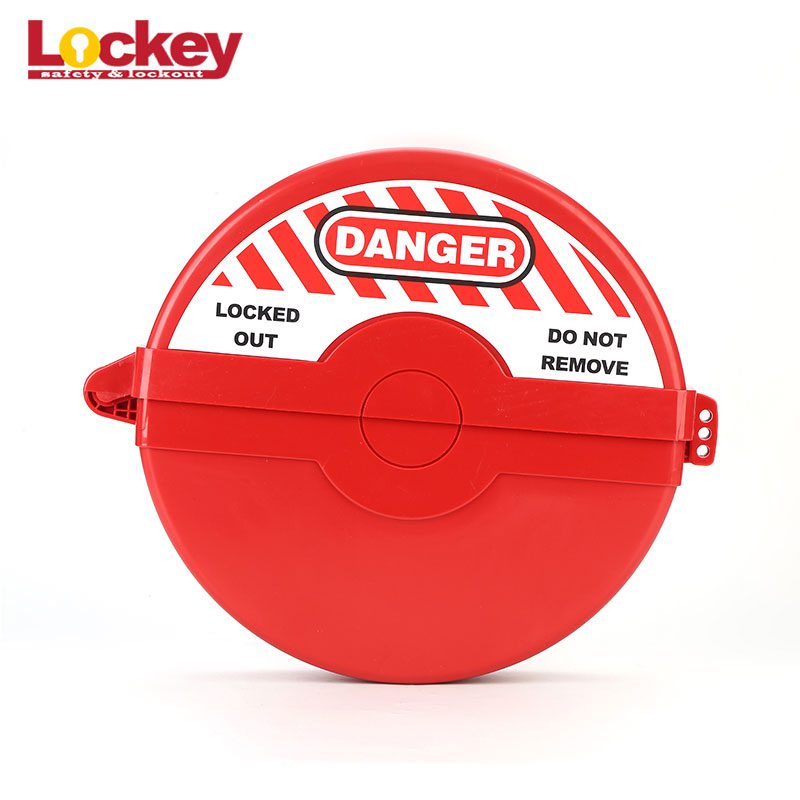

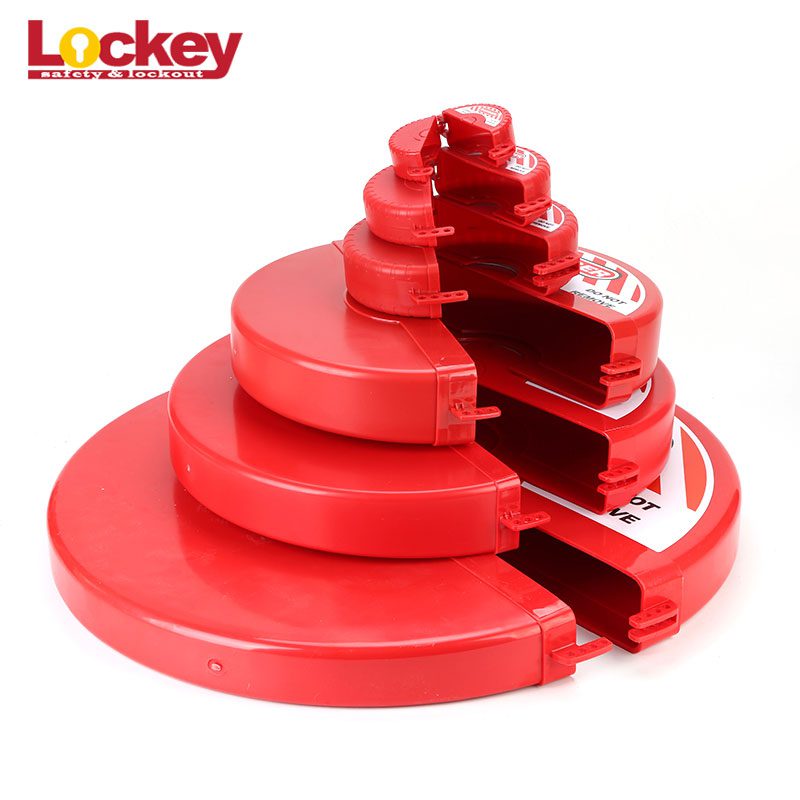

Standard Gate Valve Lockout SGVL11-17

Made from durable ABS, withstand temperature from -20℃ to +90℃, metal free. Once locked, it covers wholly around the hand wheel and prevent the valve wheel. from being turned. Two parts design can be combined into one when storing and carrying which reduce the half restore space. Accept up to 2 padlocks, locking shackle max diameter 7.5mm. Available in 7 sizes and red color, other colors can be customized, providing English tag.

PRODUCT FEATURES

OVERVIEW

• Made from durable ABS, withstand temperature from -20℃ to +90℃, metal free.

• Once locked, it covers wholly around the hand wheel and prevent the valve wheel

• from being turned.

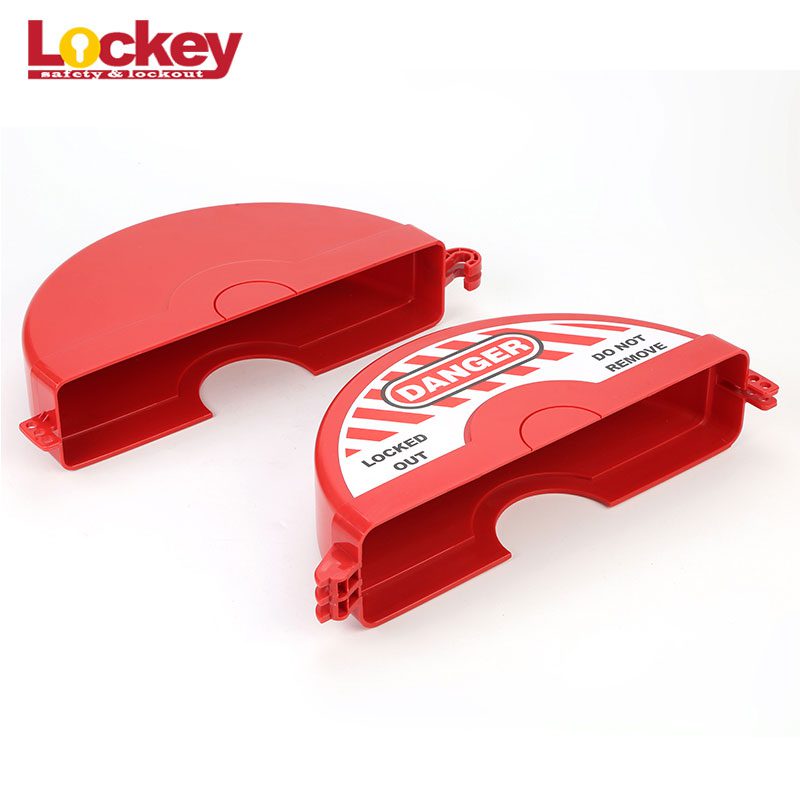

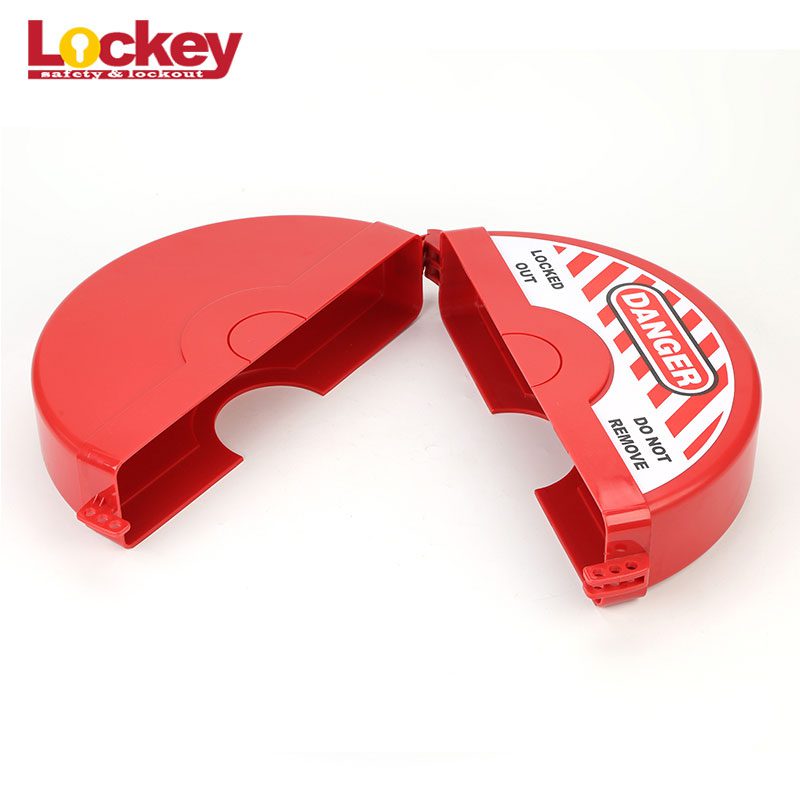

• Two parts design can be combined into one when storing and carrying which reduce the half restore space.

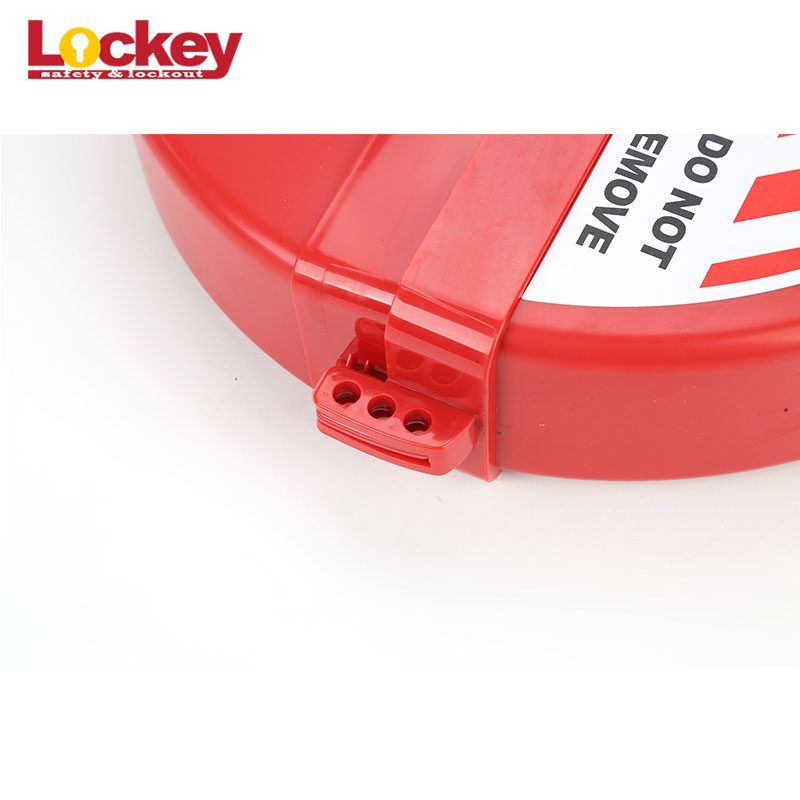

• Accept up to 2 padlocks, locking shackle max diameter 7.5mm.

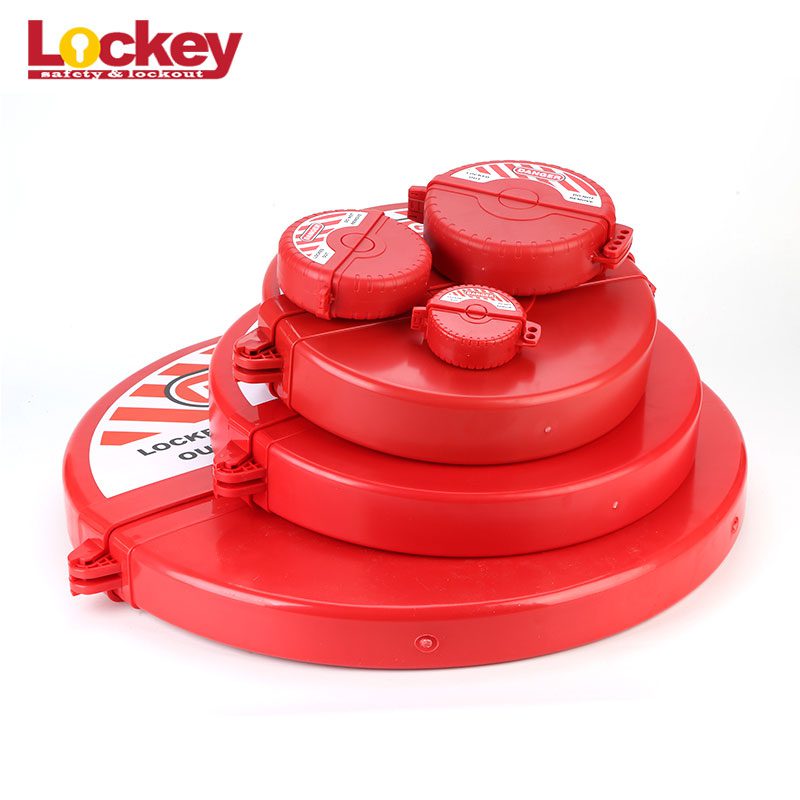

• Available in 7 sizes and red color, other colors can be customized, providing English tag.

Brand Name:	Prolockey
Description:	Standard Gate Valve Lockout
Body Material:	ABS750
Rivet Material:	Stainless steel
Service Temperature Range °F:	-20℃-90℃
Color:	Red
Lock Holes:	9.8mm

Product Number	Outer diameter(mm)	Central diameter(mm)	Hole Diameter(mm)	Inner Height(mm)	Product Net Weight:(kg)
SGVL11	83	16	19	28	0.047
SGVL12	136	29	39	38	0.108
SGVL13	170	31.5	64	50	0.195
SGVL14	260	38	85	59	0.406
SGVL15	360	61.5	99	76	0.988
SGVL16	450	83	95	78	1.529
SGVL17	655	92	135	63	3.65

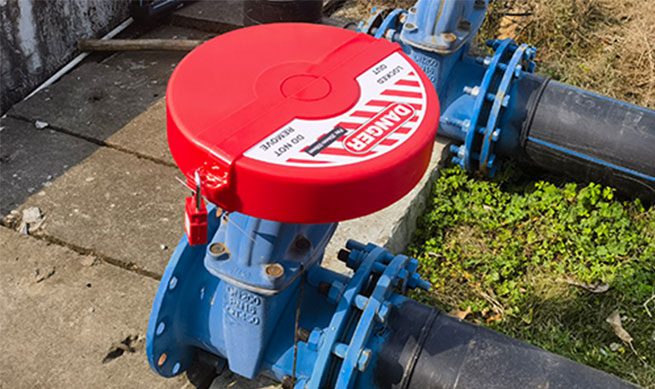

Applications

SGVL11-17APPLICATIONS

Made from durable ABS, withstand temperature from -20°C to +90°C, metal free.Once locked, it covers wholly around the hand wheel and prevent the valve wheelfrom being turned.
Two parts design can be combined into one when storing and carrying which reducethe half restore space.

Accept up to 2 padlocks, locking shackle max diameter 7.5mm.

Available in 7 sizes and red color, other colors can be customized, providing Englishtag

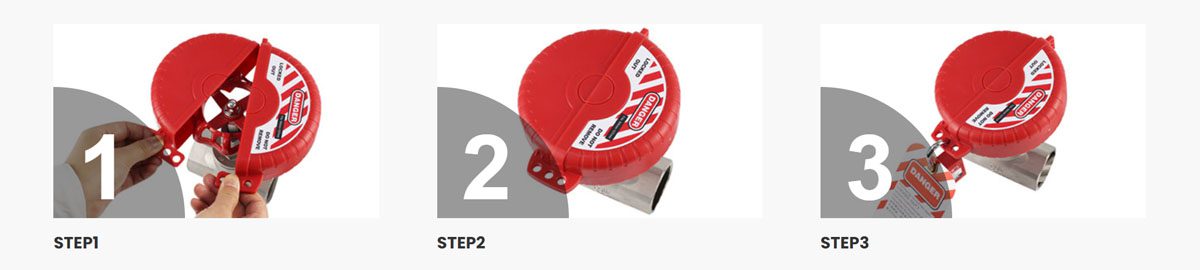

installation steps
