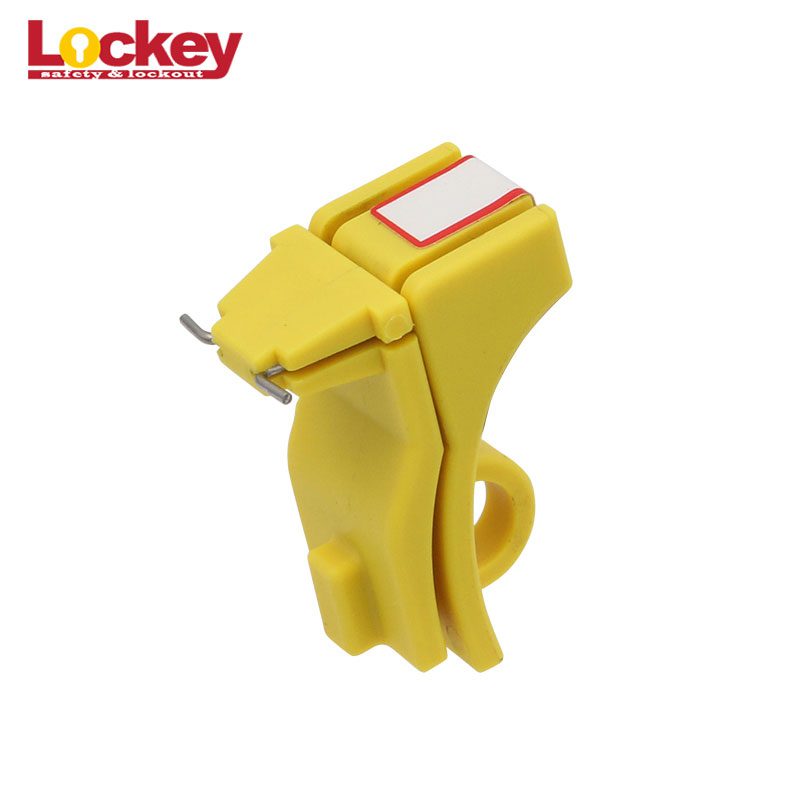

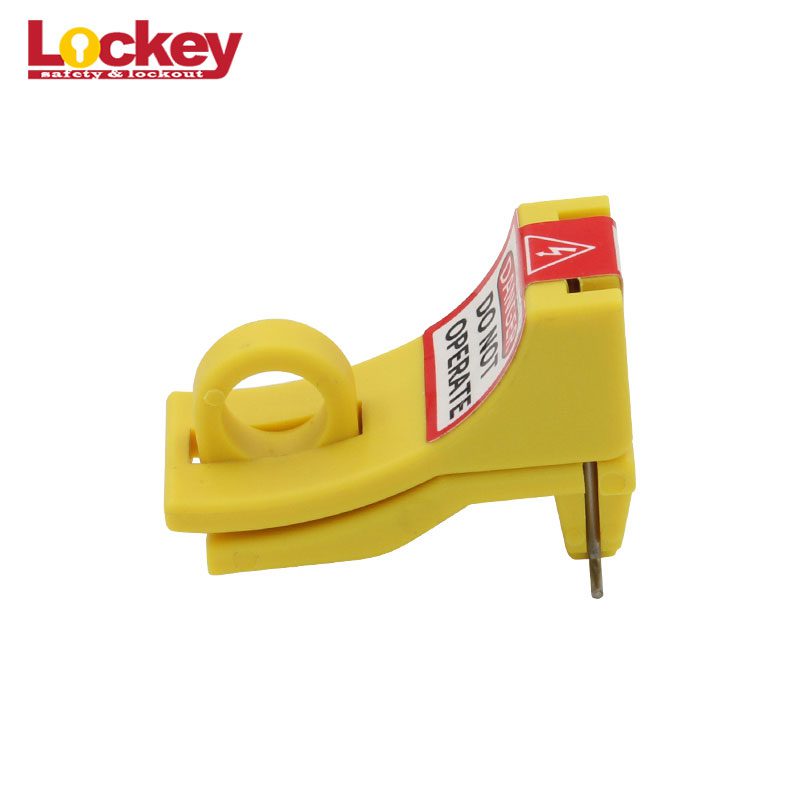

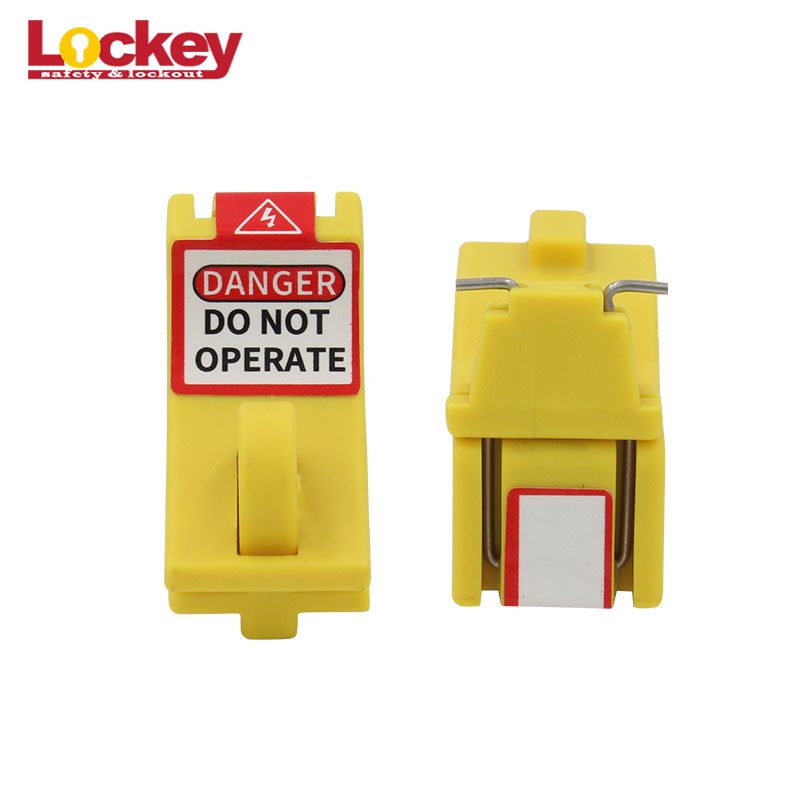

Circuit Breaker Lockout CBL101

Made from engineering plastic strengthened nylon PA，temperature resistance -20℃ to +120℃. Suitable for most miniature circuit breakers with an opening of 11 mm or less at the handle part. Accepts lock shackles up to 8mm in diameter.

PRODUCT FEATURES

OVERVIEW

•Made from engineering plastic strengthened nylon PA，temperature resistance -20℃ to +120℃.

•Suitable for most miniature circuit breakers with an opening of 11 mm or less at the handle part.

•Accepts lock shackles up to 8mm in diameter.

Product Number:	CBL101
Material:	PA6
Description:	Circuit Breaker Lockout
Brand Name:	Prolockey
Service Temperature Range °F:	-20℃-1200℃
Lock Holes:	8mm
Color:	Yellow
Total Length:	37mm
Body Width:	17.5mm
Body Height:	26.8mm
Product Net Weight:	0.0082kg
