Diaphragm Valve Lockout VSBL03-3

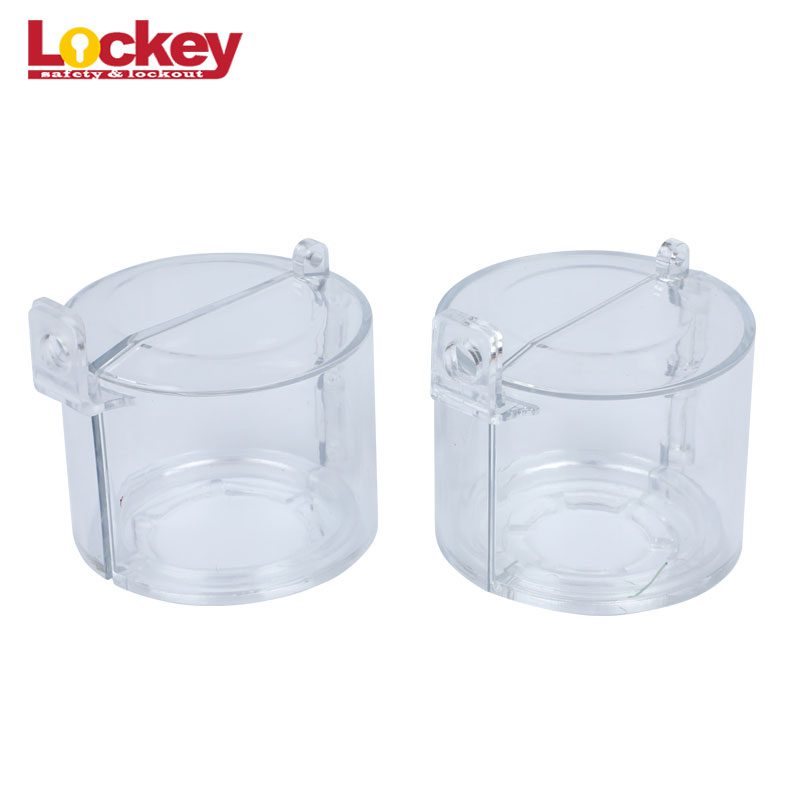

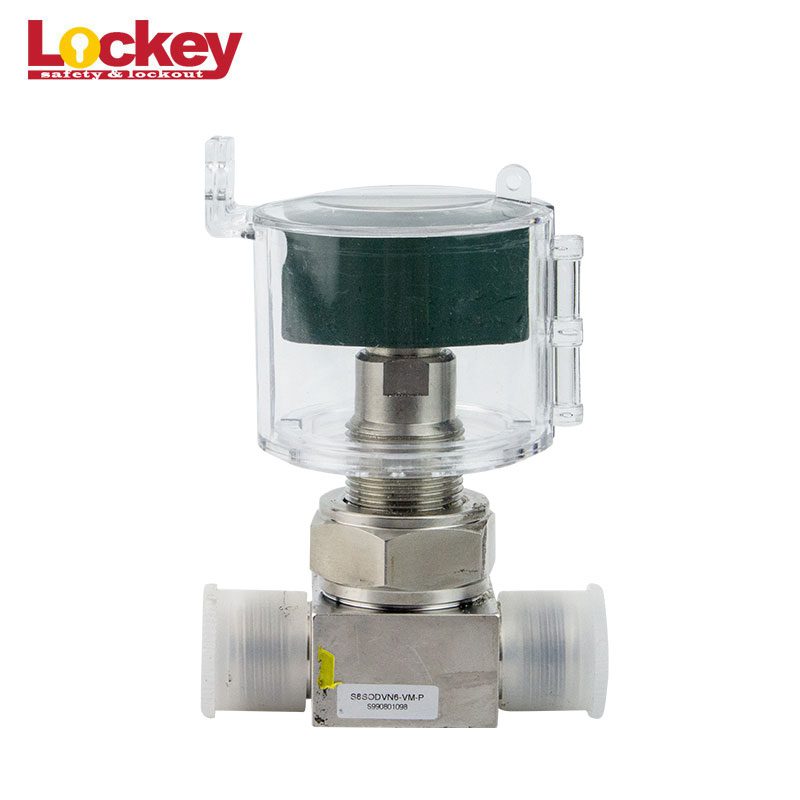

Made of transparent PC, withstand temperature from -20℃ to +120℃. Once locked, prevent the valve from being turned. The base allows use with two semicircles to accommodate valve. Accommodates valve up to 55mm diameter and 43mm tall.

PRODUCT FEATURES

OVERVIEW

•Made of transparent PC, withstand temperature from -20℃ to +120℃.

•Once locked, prevent the valve from being turned.

• The base allows use with two semicircles to accommodate valve.

•Accommodates valve up to 55mm diameter and 43mm tall.

•Fits 32mm-46mm diameter valve.

Product Number:	VSBL03-3
Material:	PC2805
Description:	Diaphragm Valve Lockout
Brand Name:	Prolockey
Service Temperature Range °F:	-20℃-120℃
Lock Holes:	8mm
Color:	Transparency
Total diameter:	60mm
Inner diameter:	54.7mm
Body Height:	49mm
Locking diameter:	24.4mm
Product Net Weight:	0.042kg

Applications

VSBL03 APPLICATIONS

Made of transparent PC, withstand temperature from -20°C to +120°C.
Once locked, prevent the valve from being turned.
The base allows use with two semicircles to accommodate valve.
Accommodates valve up to 55mm diameter and 43mm tall.
Fits 32mm-46mm diameter valve.
