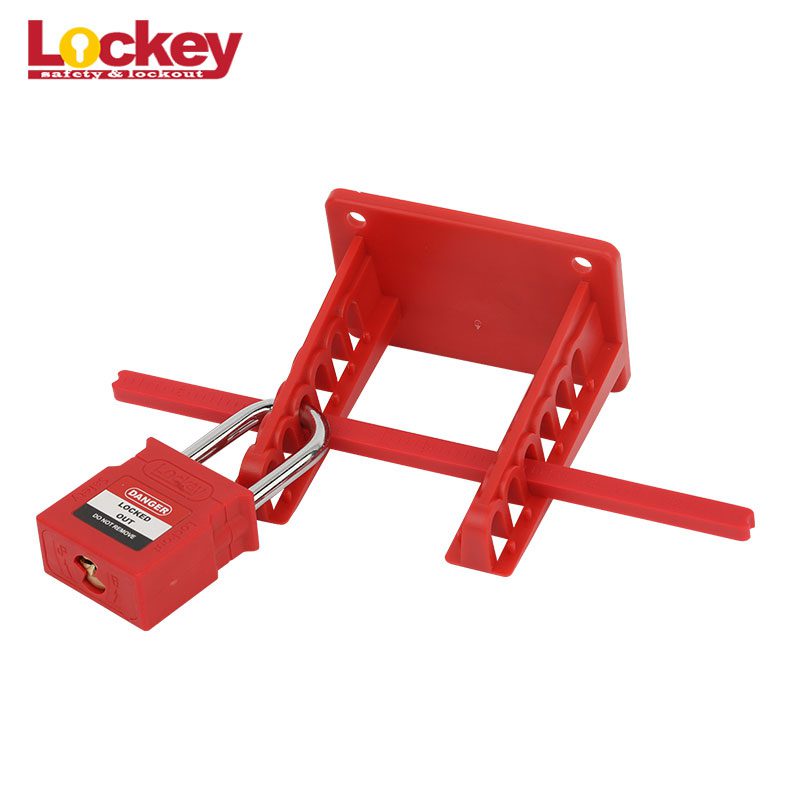

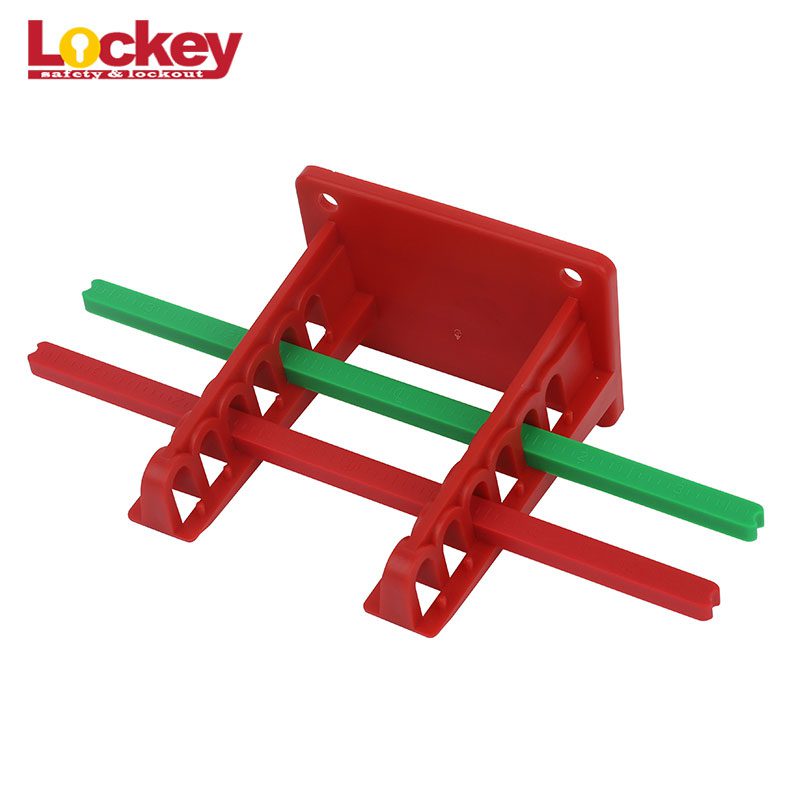

•The base is made of engineering plastic ABS and the main rod is made of nylon PA.

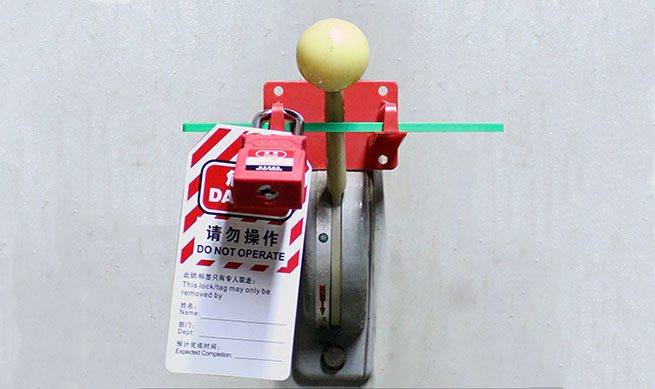

•The back self-adhesive track can be permanently fixed to the switchboard, simply clean the disk and paste it, without drilling.
•Lock the 35-85mm gate.
•The red group bar indicates that the switch is off; green indicates that the switch is on.
Product Number: | ECL11 |
Material: | ABS750 |
Description: | Disconnector Lockout |
Brand Name: | Prolockey |
Service Temperature Range °F: | – 20℃-90℃ |
Lock Holes: | 8.5mm |
Color: | Red |
Total Length: | 90mm |
Body Width: | 97mm |
Body Height: | 60mm |
Rod Length: | 194mm |
Product Net Weight: | 0.058kg |
The base is made of engineering plastic ABS and the main rod is made of nylon PA.
The back self-adhesive track can be permanently fixed to the switchboard, simply clean the disk and paste it, without drilling.
Lock the 35-85mm gate.
The red group bar indicates that the switch is off; green indicates that the switch is on.
