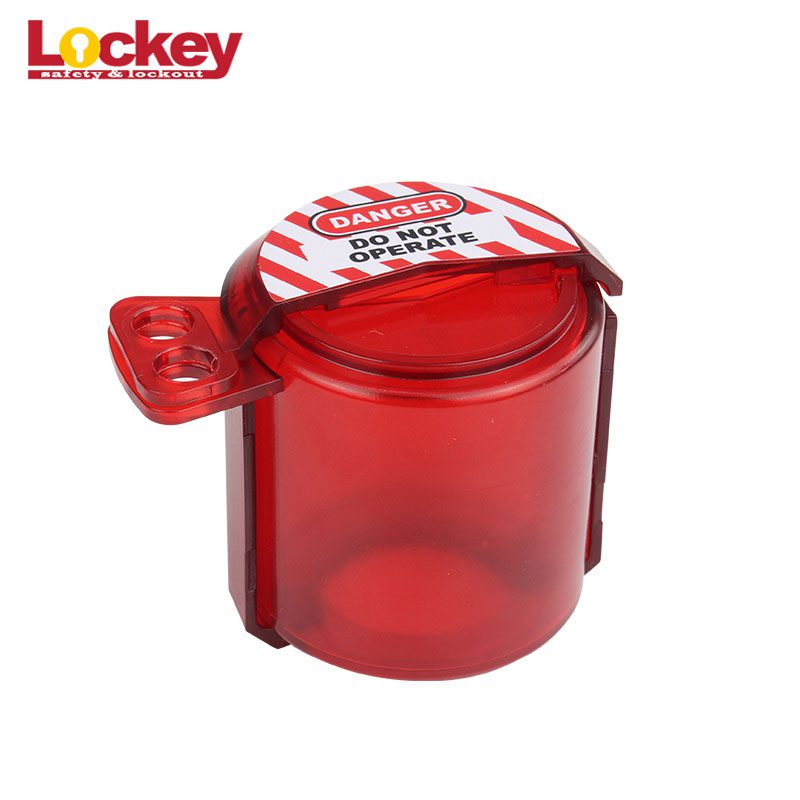

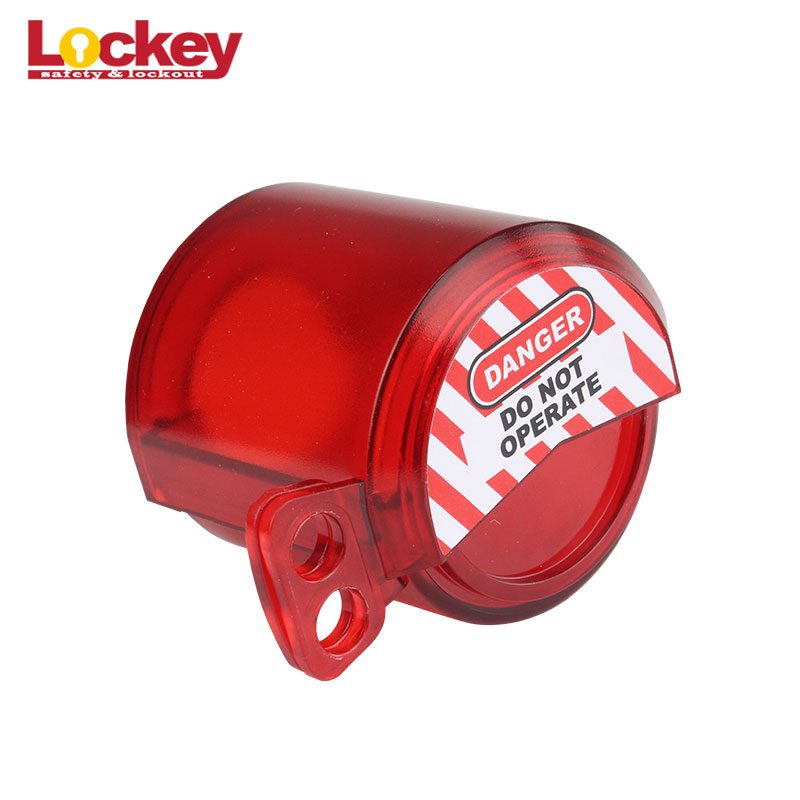

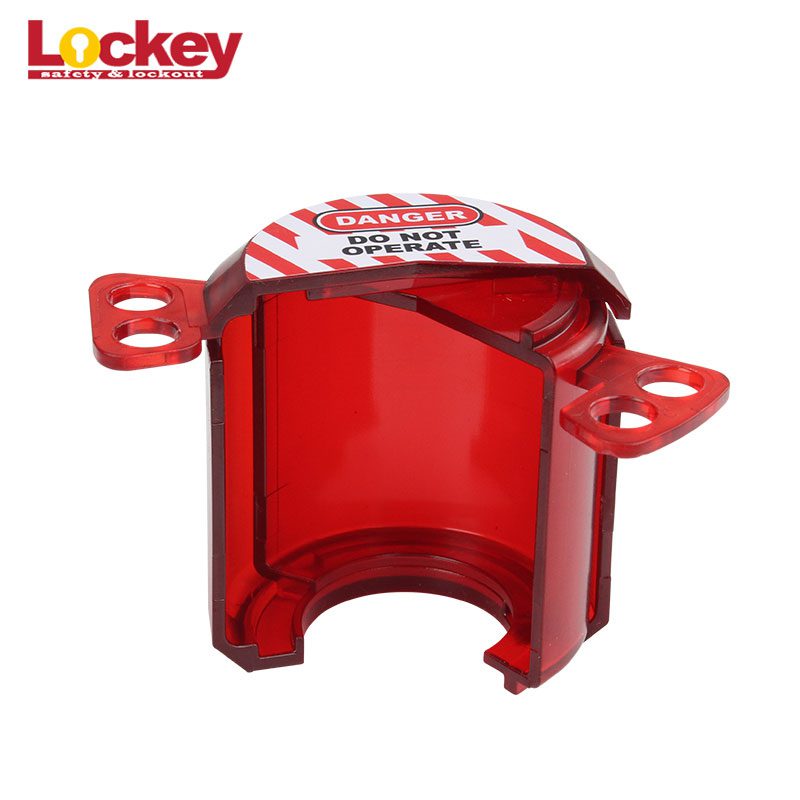

•Made of polycarbonate, temperature resistance -20℃ to +120℃.

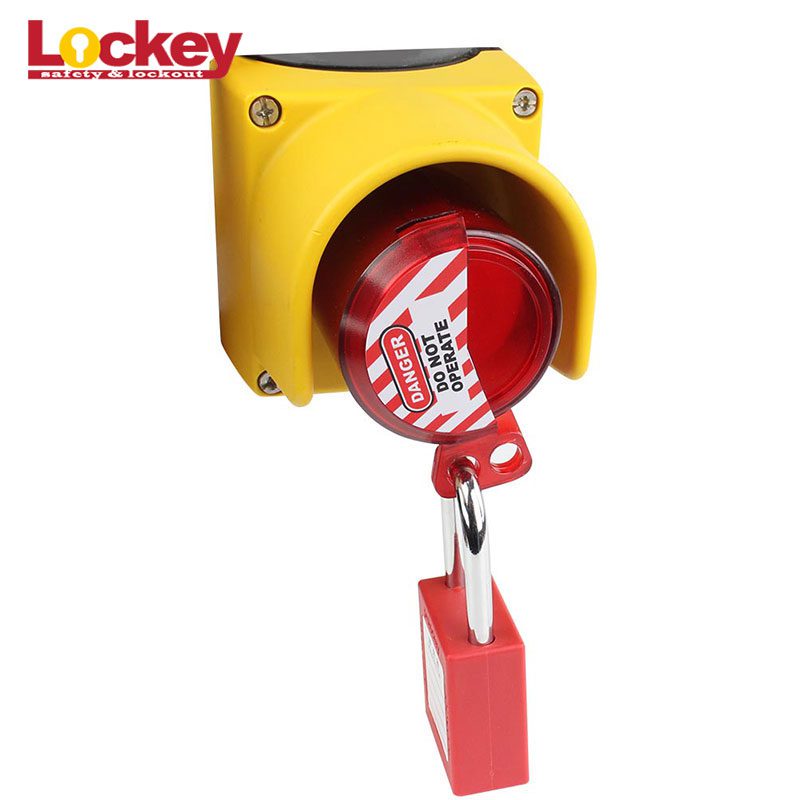

•Specially designed for locking Siemens emergency stop switch or emegency stop switch with shields in tight locations.
•Suitable for chemical, food, pharmaceutical and other situations.
•Can be managed by 2 people at the same time.
| Product Number: | SBL51 |
| Material: | PC |
| Description: | Emergency Stop Button Lockout |
| Brand Name: | Prolockey |
| Service Temperature Range °F: | – 20℃-120℃ |
| Lock Holes: | 7.8mm |
| Color: | Transparency |
| Total Diameter: | 51.9mm |
| Inner Diameter: | 44.7mm |
| Body Height: | 58.8mm |
| Hole Diameter: | 27.5mm |
| Product Net Weight: | 0.0375kg |

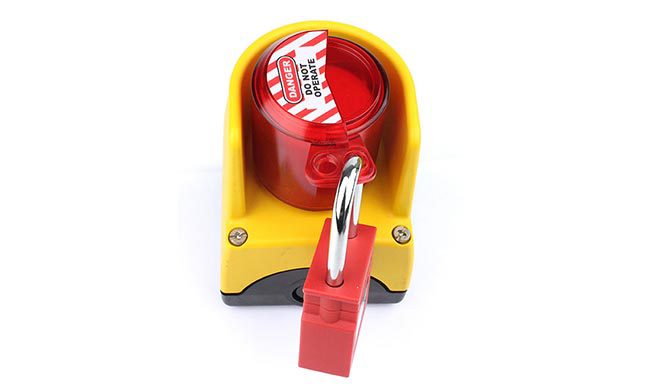

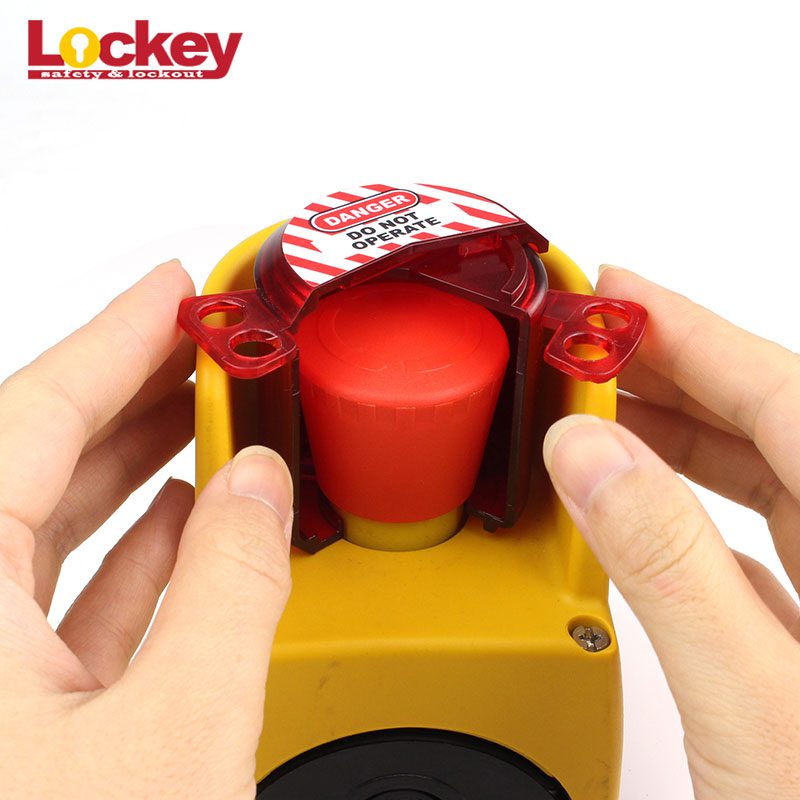

Many emergency stop buttons have a raised shield or guard ring around them to prevent accidental bumps, and Siemens switches in particular use a housing profile that a generic universal lockout cover often doesn’t seat against cleanly. This design is shaped to fit both cases rather than needing a separate adapter.

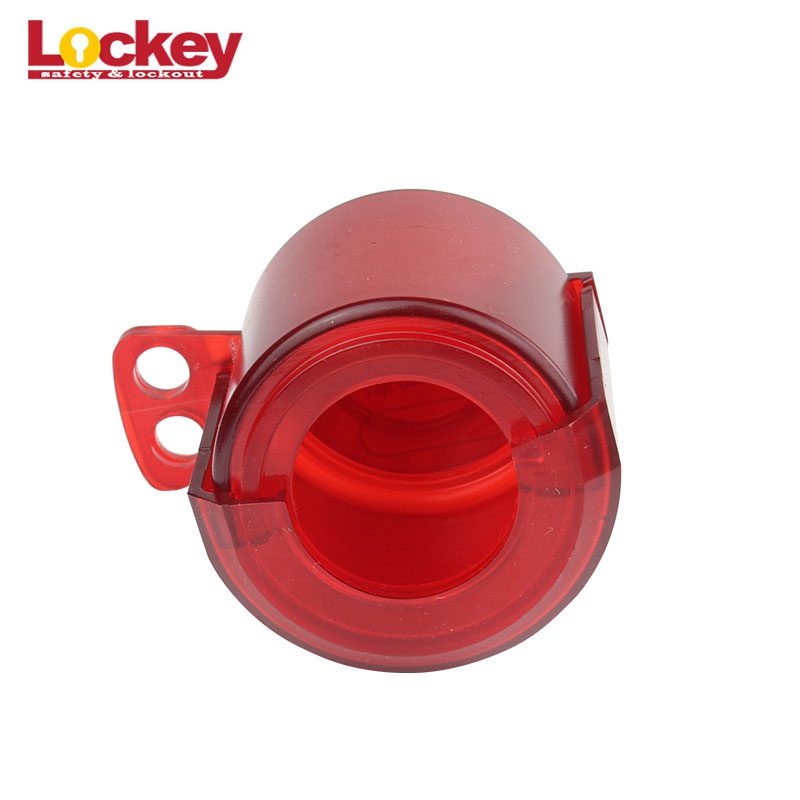

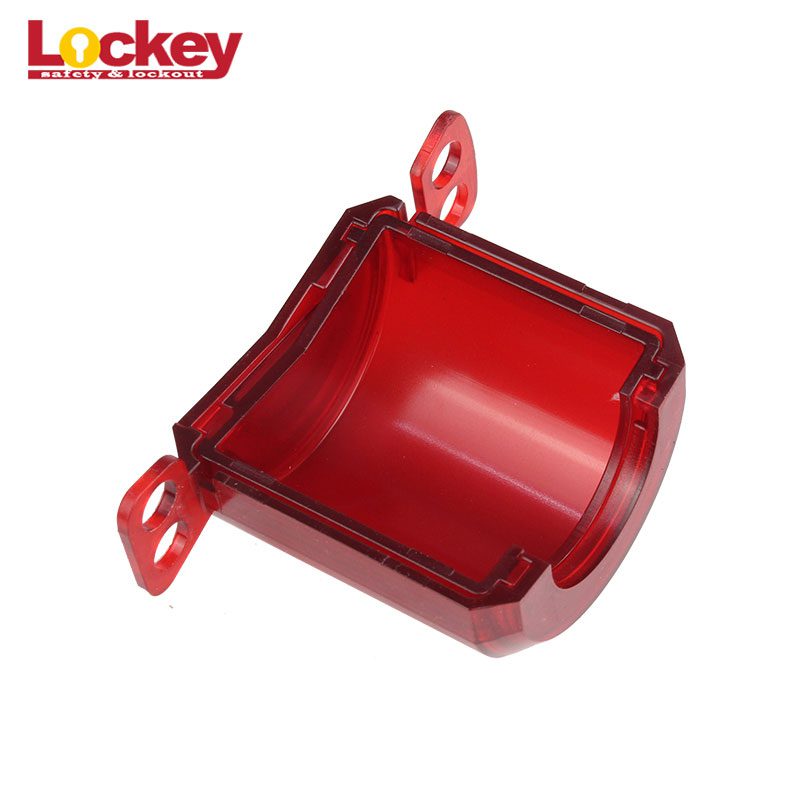

The lockout has two separate lock holes, so two different workers can each apply their own padlock to the same isolation point. Neither can remove the cover and re-energize the switch until both locks come off, which supports a two-person or dual-authorization lockout procedure on one control point.
It’s built around Siemens’ housing profile, so a close but non-Siemens shielded switch should be checked against the total and inner diameter measurements before ordering. A mismatch in shield height or diameter can leave gaps a standard lockout wouldn’t have.

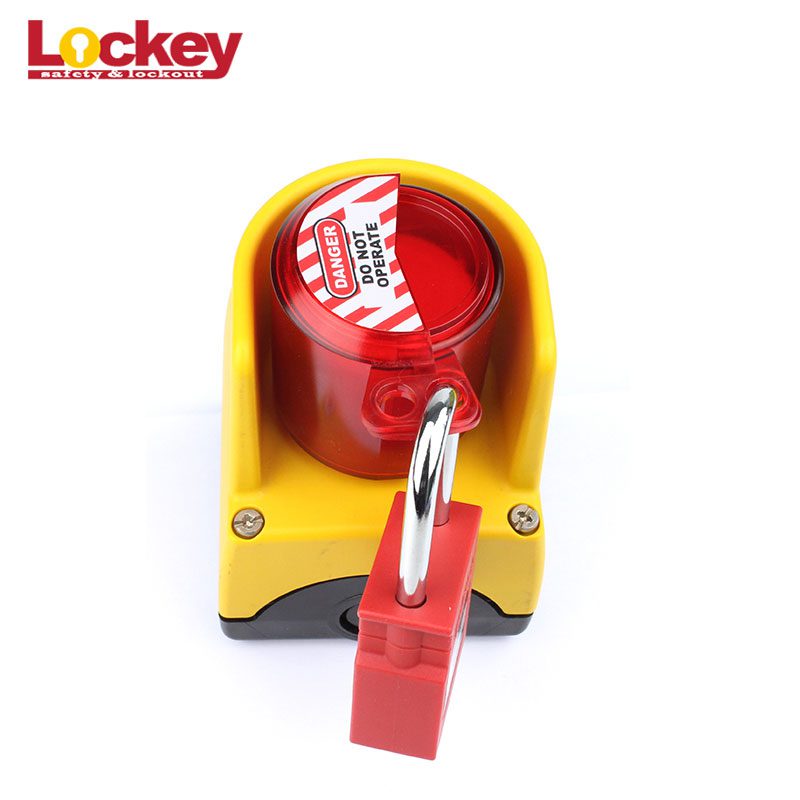

The transparent PC construction lets supervisors see the switch’s position and any labeling through the cover without removing it, which matters for quick visual verification during a lockout audit.
Prolockey makes several emergency stop lockout variants for different diameters and mounting styles. The SBL01/SBL02 series covers 22.5mm-30mm switches, and SBL07-08 covers 22.7mm-29.8mm, if this one isn’t the right fit.
