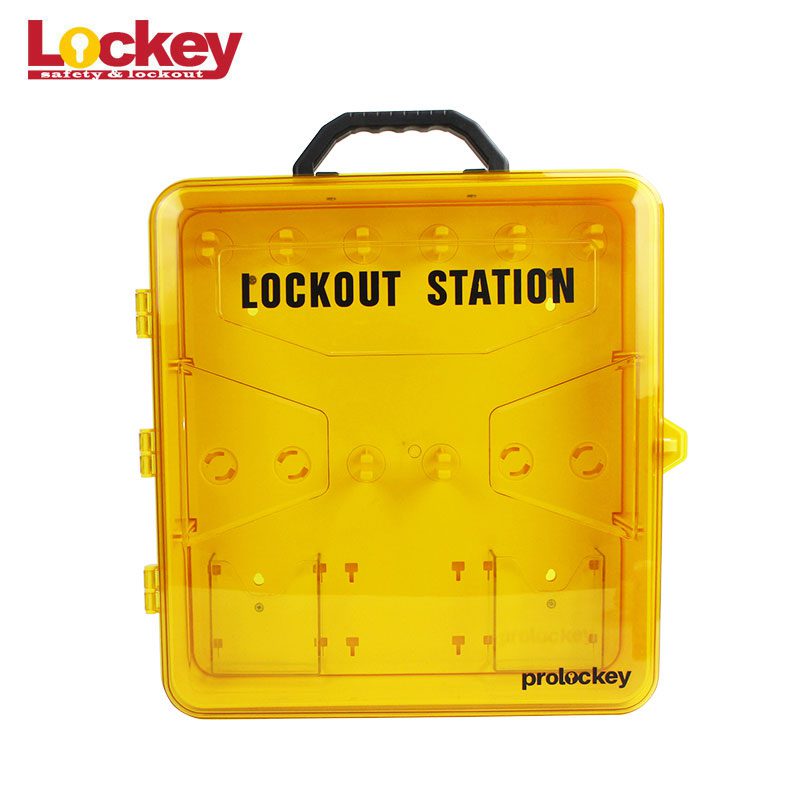

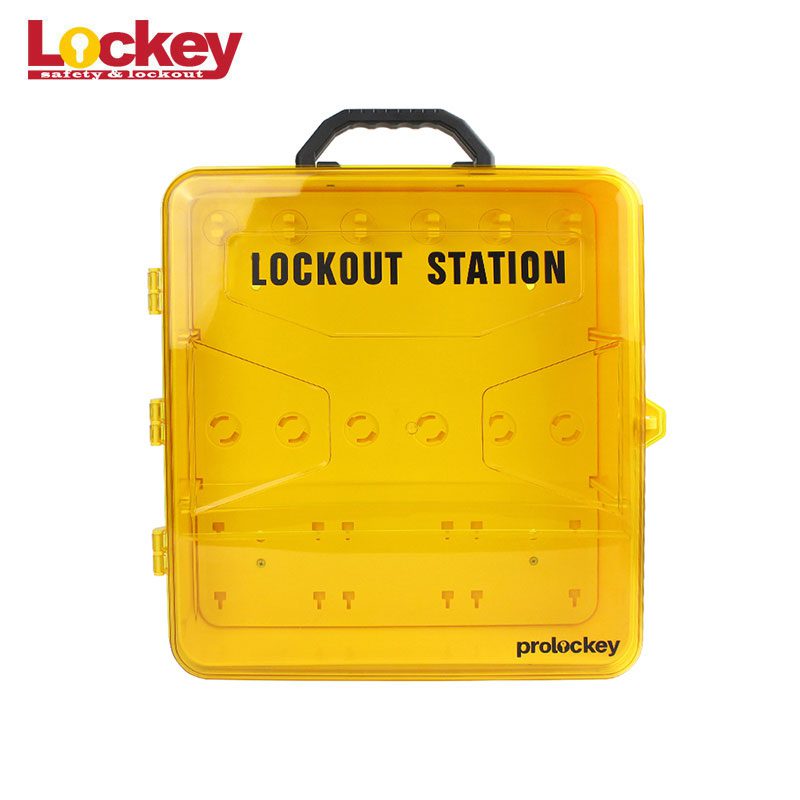

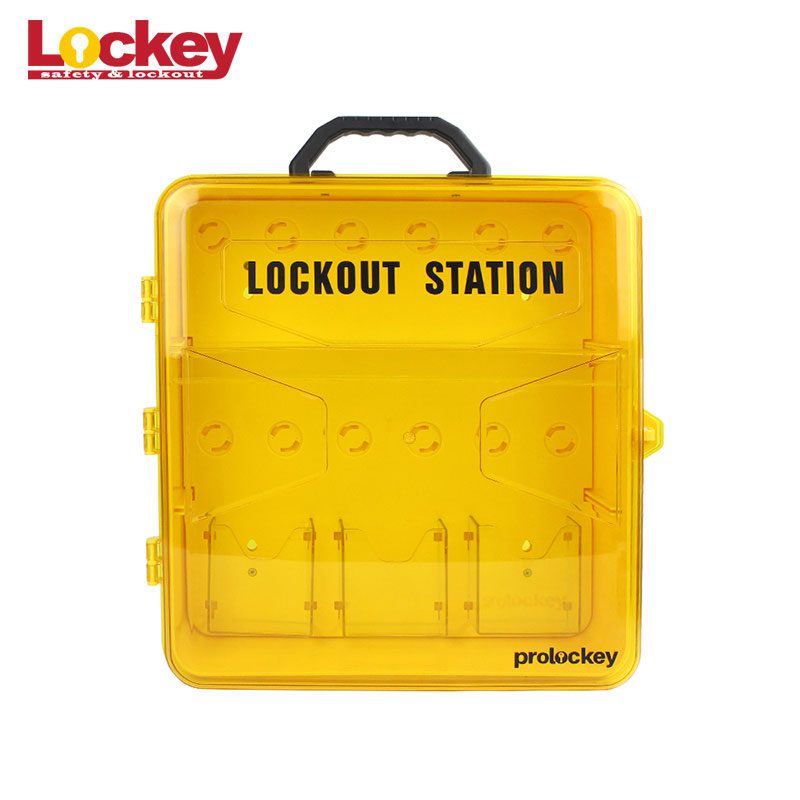

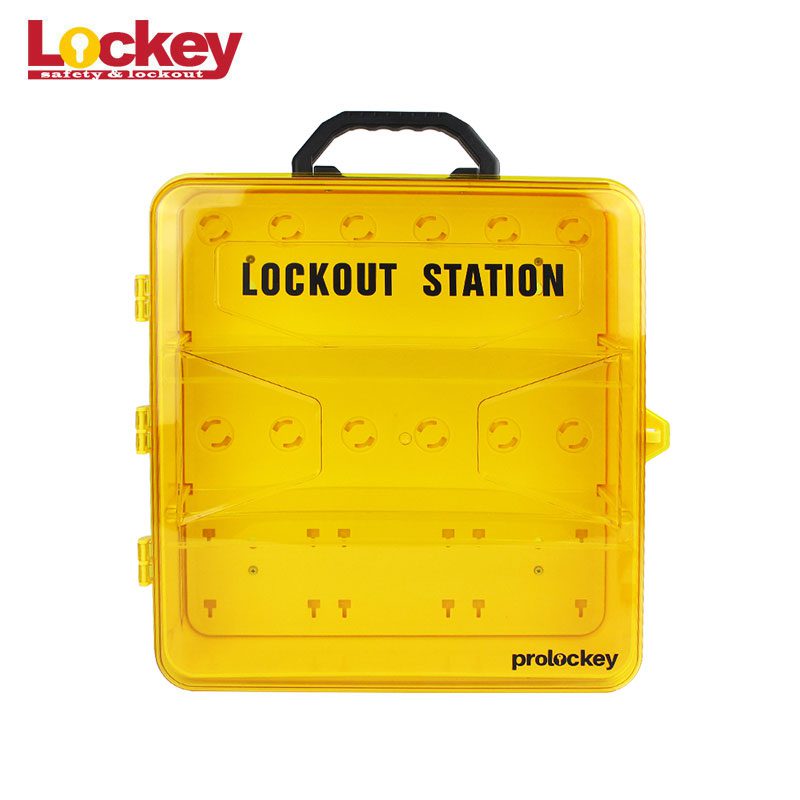

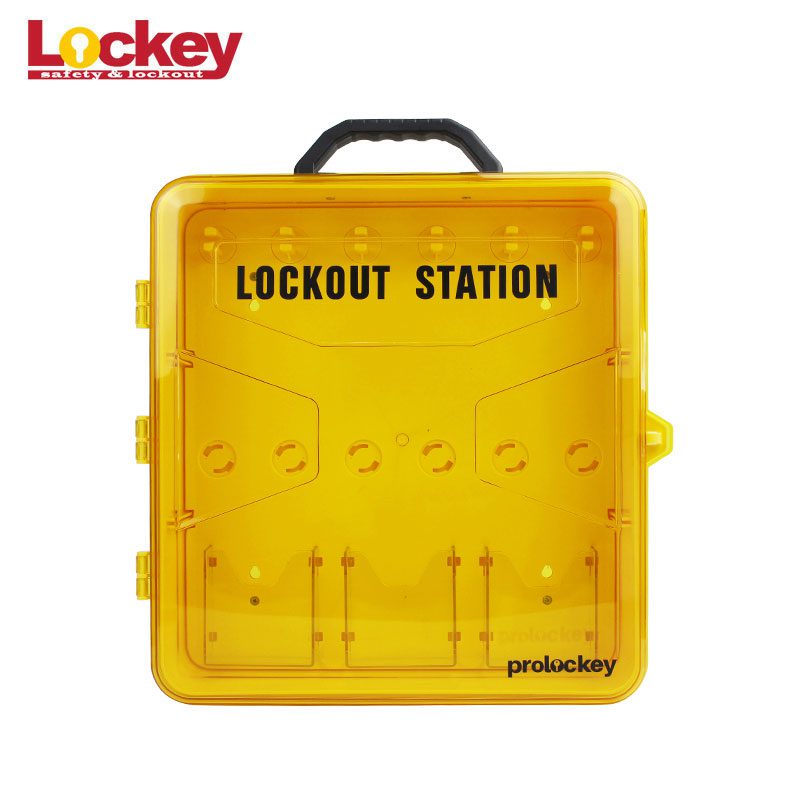

Lockout Station PLK21-26

The lockout station is made of engineering plastic ABS with transparent PC cover. Comes with predrilled holes for easy wall mounting when you want it to stay put and attachable handle when you need it on the go. Lockable clear plastic door provides instant visibility while protecting contents from damage, theft and loss. The overall size: 440mm(W) × 390mm(H) × 130mm(D).

OVERVIEW

The lockout station is made of engineering plastic ABS with transparent PC cover.
Comes with predrilled holes for easy wall mounting when you want it to stay put and attachable handle when you need it
on the go.
Lockable clear plastic door provides instant visibility while protecting contents from damage, theft and loss.
The overall size:440mm(W)×390mm(H)×130mm(D).

Product Number:	PLK21-26
Material:	ABS750
Description:	Lockout Station
Color:	Yellow
Service Temperature Range °F:	-20℃-90℃
Keyhole Diameter:	7.5mm

Product Number:	Total Length:(mm)	Body Width:(mm)	Body Height:(mm)	Product Net Weight:(kg)
PLK21	430	140	430	2.41
PLK22	430	140	430	2.50
PLK23	430	140	430	2.56
PLK24	430	140	430	2.55
PLK25	430	140	430	2.69
PLK26	430	140	430	2.66

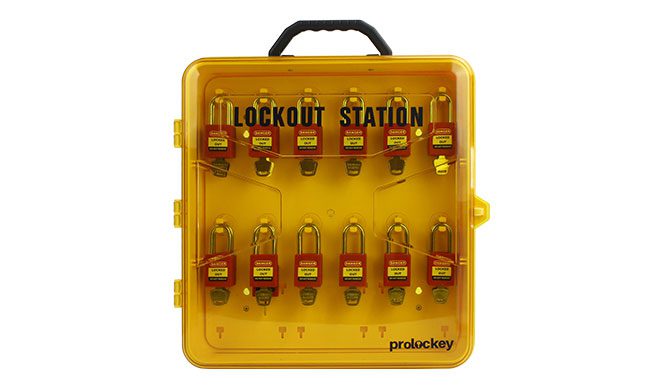

Applications

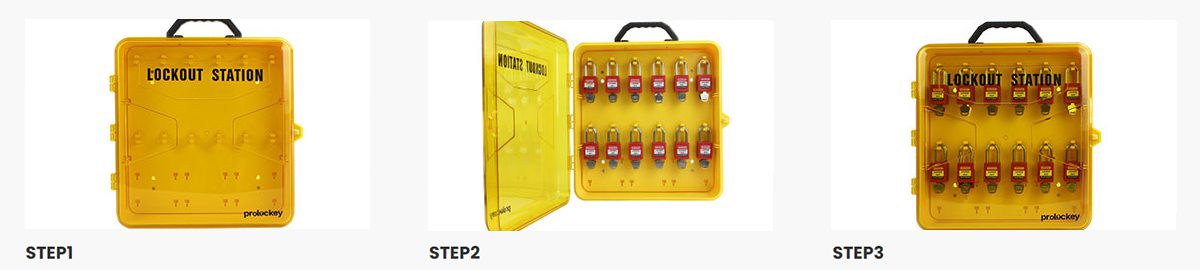

installation steps

FAQs

What’s the point of a lockable door if the padlocks inside are already locked?

The door lock adds a second layer of protection. It prevents someone from removing padlocks, hasps, or tags from the station itself, whether by mistake or on purpose, which matters at sites where the station sits in a shared or less-supervised area.

Can the same unit really switch between wall-mounted and portable use?

Yes. The predrilled holes let it stay fixed to a wall as a permanent point, while the attachable handle lets it come off and travel with a crew doing lockout work across multiple job sites. Which mode you use depends on the day’s task rather than being a fixed choice at purchase.

Does the clear door compromise security since contents are visible from outside?

No. Visibility and physical access are separate things. Anyone can see what’s stored inside for a quick visual check, but the locked door still prevents anyone without the key from actually opening it and removing anything.

Does the lockout station itself need to meet OSHA requirements, or just the locks and tags stored inside?

OSHA’s lockout/tagout standard (29 CFR 1910.147) sets requirements for the locks, tags, and procedures used to isolate energy sources — it doesn’t mandate a specific storage container design. A lockable station isn’t itself an OSHA-required item, but it supports compliance by keeping devices organized, accounted for, and tamper-resistant between uses.

Who should hold the key to the station’s door once it’s deployed on site?

Most facilities assign door-key control to a single supervisor or safety coordinator rather than distributing it to every authorized worker. The padlocks inside still get keyed individually per worker or per program, so the door lock is a separate layer of accountability, not a replacement for individual lock control.
