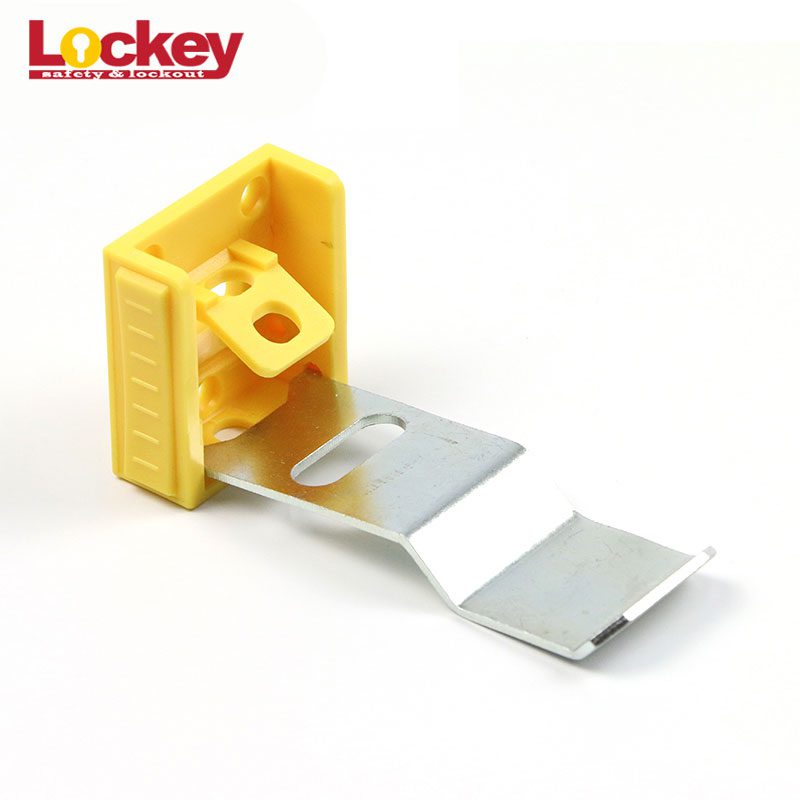

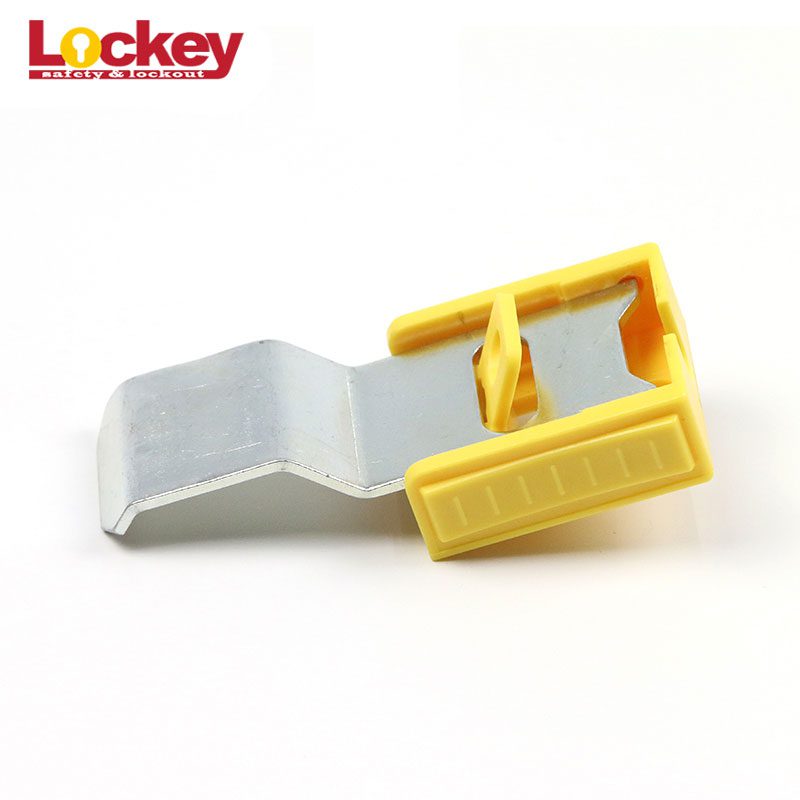

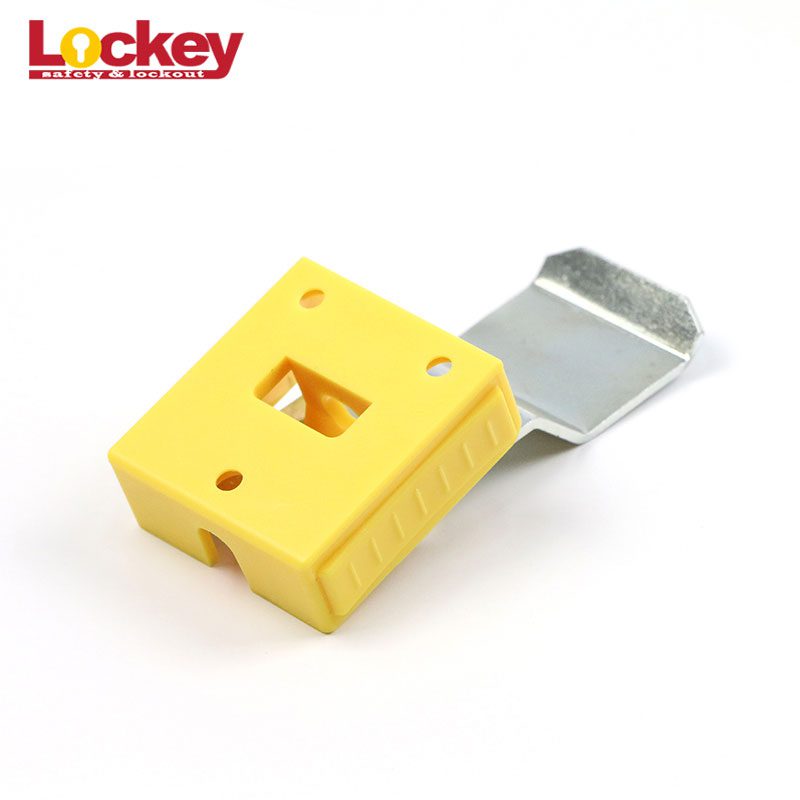

•The lock body is made of ABS and the metal is made of iron chrome.

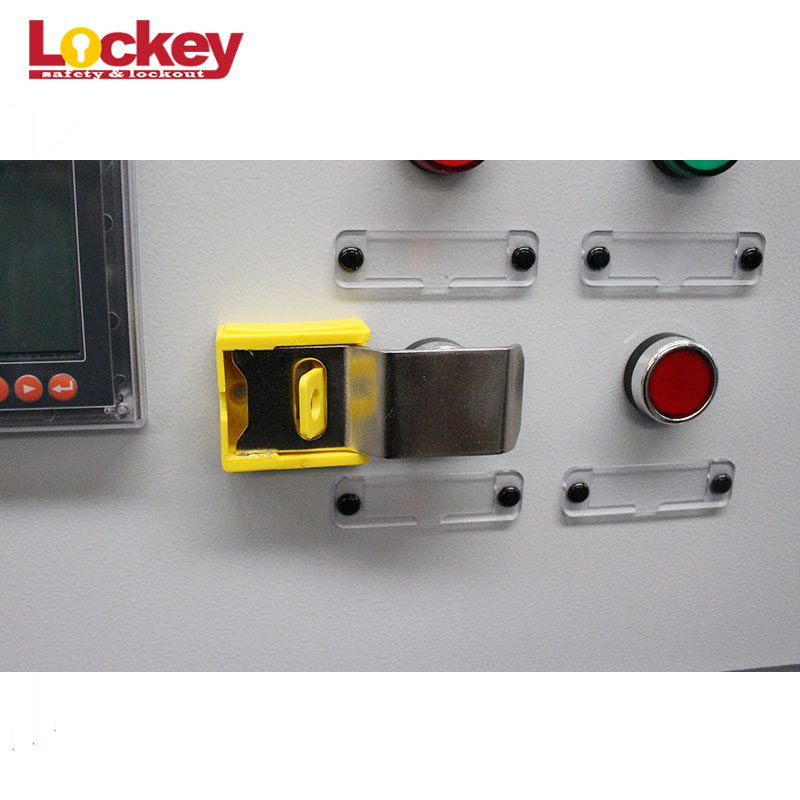

•Can achieve a variety of non-standard electrical or distribution cabinet lock.
•Can be fixed by screws or 3M double-sided tape.
•Different shapes of locks can be designed according to customer requirements.
| Brand Name: | Prolockey |
| Material: | ABS750 |
| Description: | Multi-Functional Industrial Electrical Lockout |
| Service Temperature Range °F: | – 20℃-90℃ |
| Lock Holes: | 7mm |
| Color: | Yellow |
| Product Number | Total Length(mm) | Bottom Length(mm) | Body Width(mm) | Body Height(mm) | Product Net Weight(kg) |
| ECL01 | 87.5 | 45.5 | 45 | 17 | 0.039 |
| ECL02 | 92.5 | 45.5 | 45 | 17 | 0.056 |
| ECL03 | 92.5 | 45.5 | 45 | 17 | 0.056 |
| ECL04 | 45.5 | 45.5 | 45 | 17 | 0.042 |
| ECL05 | 103 | 45.5 | 45 | 17 | 0.066 |
| ECL06 | 120 | 45.5 | 45 | 17 | 0.090 |
| ECL07 | 90 | 45.5 | 45 | 17 | 0.065 |
