• Made from durable ABS, withstand temperature from -20℃ to +90℃.

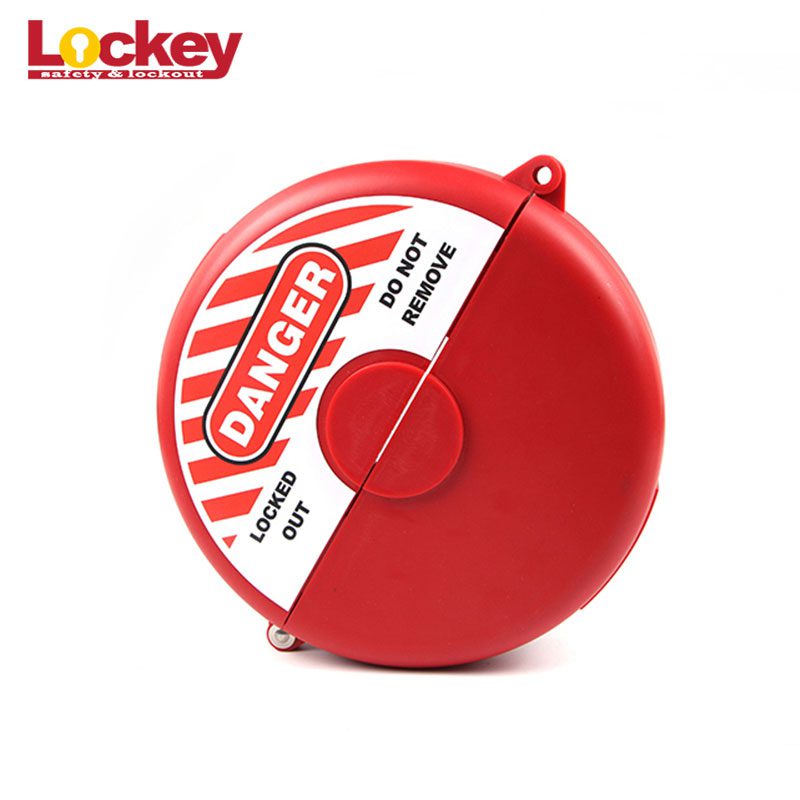

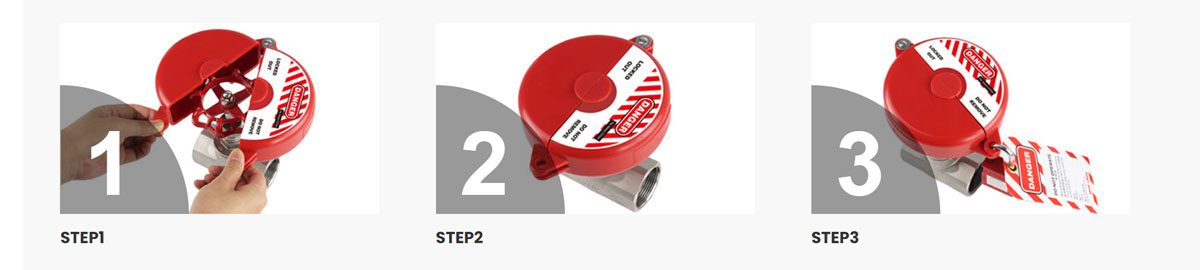

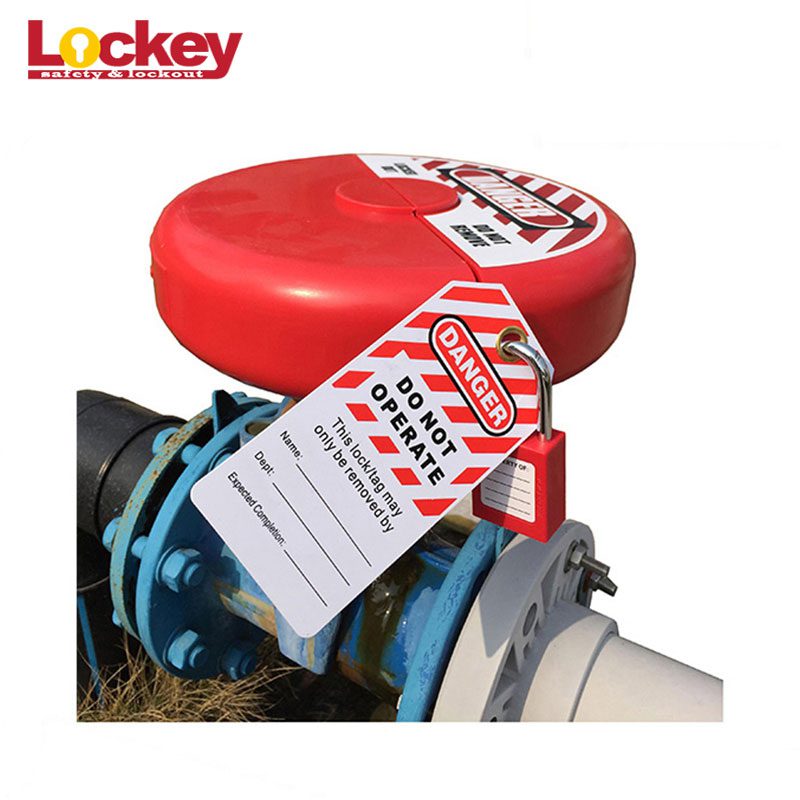

• Once locked, it covers around the hand wheel and prevent the valve wheel from being turned.
• Accept up to 1 padlock, locking shackle max diameter 9.5mm.

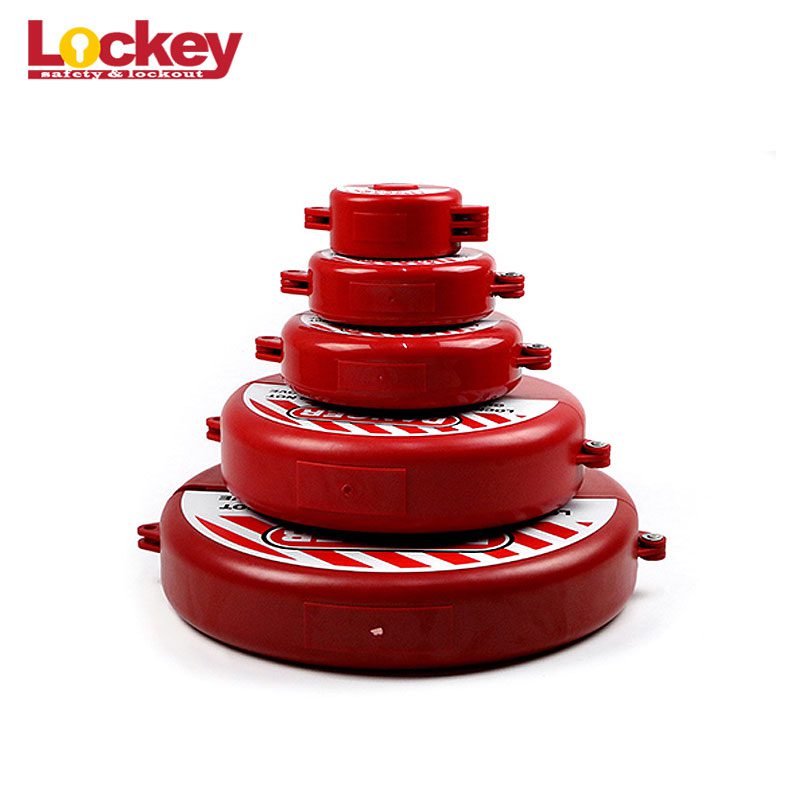

• Available in 5 sizes and red color, other colors can be customized, providing English tag.
• Transparent one can be customized with PC.
• Part no.: SGVL01-TR ~ SGVL05-TR.
| Brand Name: | Prolockey |
| Description: | Standard Gate Valve Lockout |
| Body Material: | ABS750 |
| Rivet Material: | Stainless steel |
| Service Temperature Range °F: | -20℃-90℃ |
| Color: | Red |
| Lock Holes: | 9.8mm |
| Product Number | Outer diameter(mm) | Central diameter(mm) | Hole Diameter(mm) | Inner Height(mm) | Product Net Weight:(kg) |
| SGVL01 | 80 | / | 20 | 30 | 0.067 |
| SGVL02 | 142 | 33 | 45 | 37 | 0.230 |
| SGVL03 | 184 | 53.3 | 63 | 44 | 0.359 |
| SGVL04 | 280 | 71.7 | 89 | 67 | 0.785 |
| SGVL05 | 364 | 74.4 | 105 | 67 | 1.227 |
